Lead Sheets for Radiation Shielding: A Buyer's Guide for Hospitals & Diagnostic Centres

Every X-ray room, CT suite, cath lab, and nuclear medicine facility needs radiation shielding that's engineered correctly - not estimated. Under-specify the lead sheet thickness and you risk radiation leakage and regulatory non-compliance. Over-specify it and you pay for shielding capacity the room doesn't need, along with unnecessary structural load.

For hospital administrators, diagnostic centre owners, and the contractors who build out imaging facilities, choosing the right lead sheet isn't just a procurement decision - it's a compliance and patient-safety decision governed by the Atomic Energy Regulatory Board (AERB). This guide covers what buyers need to know before sourcing lead sheets for a shielding project.

Why Lead Is the Standard Material for Radiation Shielding

Lead's effectiveness as a shielding material comes down to two physical properties: high density and high atomic number. Both properties make lead highly efficient at attenuating gamma rays and X-rays within a relatively thin, space-efficient layer - which is exactly why it remains the default shielding material in diagnostic imaging construction, decades after alternatives have been explored.

Compared to concrete (the other common shielding material), lead achieves equivalent attenuation at a fraction of the thickness, which matters significantly in hospital construction, where wall space and room dimensions are often constrained.

How Lead Sheet Thickness Is Determined

This is the part buyers get wrong most often - assuming a single "standard" thickness applies to every room. In reality, required thickness depends on several variables that a radiation safety officer or AERB-empanelled consultant calculates for each specific installation:

Equipment type and energy (kVp/MeV). A diagnostic X-ray unit, a CT scanner, and a linear accelerator (LINAC) operate at very different energy levels, and each requires a different shielding calculation. Higher-energy equipment generally needs thicker lead.

Workload of the equipment. Rooms with high patient throughput and frequent exposures require more conservative shielding than low-usage rooms.

Occupancy of adjacent areas. A wall shared with a busy corridor or an occupied office needs more shielding than a wall backing onto an unoccupied space, since shielding requirements are based on dose limits for people in adjacent areas, not just the room itself.

Primary vs secondary barriers. Walls directly in the beam path (primary barriers) require thicker lead than walls only exposed to scattered radiation (secondary barriers) - this is why shielding thickness often varies wall-to-wall within the same room.

However, buyers should always work from the shielding design report prepared by a qualified radiation safety consultant, not a generic thickness assumption - AERB approval is tied to the specific calculated design, not a standard figure.

Regulatory Requirements: What Hospitals Need to Know

In India, any facility installing diagnostic radiology, CT, or nuclear medicine equipment must comply with AERB (Atomic Energy Regulatory Board) shielding and licensing norms before the equipment can be commissioned. This typically involves:

1. A radiation shielding design prepared by a Radiological Safety Officer (RSO) or AERB-recognised consultant, specifying material and thickness for every wall, door, and viewing window.

2. Procurement and installation of shielding material - lead sheet, lead-lined plywood/gypsum panels, or lead glass - matching the approved design exactly.

3. Post-installation verification, sometimes including radiation survey testing, before AERB grants the operating licence for the equipment.

Because AERB approval is design-specific, hospitals and diagnostic centres should source lead sheet after the shielding design is finalised, and should keep documentation of material specifications (thickness, purity, certification) for the compliance file - this is often requested during AERB inspections or renewals.

What to Check When Sourcing Lead Sheet for Hospital Projects

Purity and consistency. Shielding calculations assume a specific lead density and purity. Sheet with inconsistent thickness or impurities can create weak points in an otherwise correctly designed barrier.

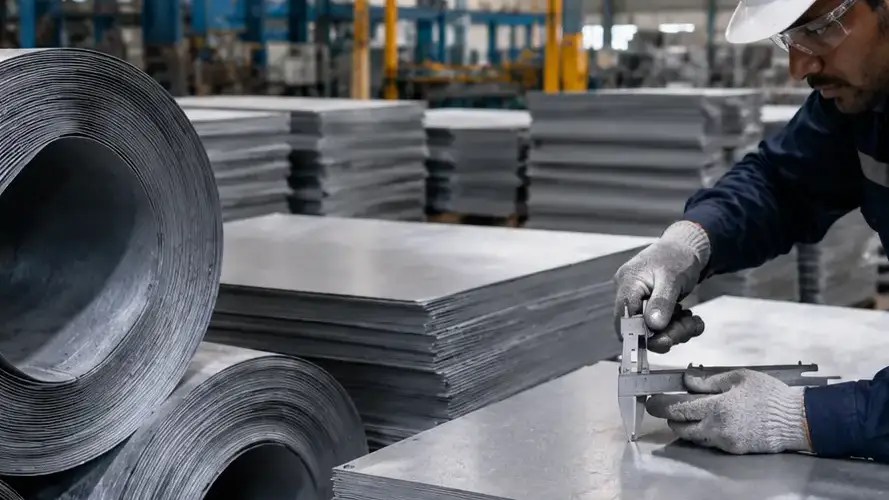

Thickness tolerance. Ask for manufacturing tolerance specifications - a sheet that's thinner than specified in patches undermines the shielding design even if the average thickness is correct.

Sheet dimensions and jointing. Lead sheet is typically installed in overlapping sections to avoid gaps at seams. Confirm the supplier can provide sheet sizes that minimise joints for your specific wall dimensions, or can guide correct overlap methodology.

Certification and traceability. For AERB compliance documentation, it helps to source from a manufacturer who can provide material specification sheets confirming thickness and composition - useful during inspections or if a shielding audit is required later.

Lead-bonding compatibility. Most installations bond lead sheet to plywood, gypsum board, or steel backing. Confirm the sheet type (soft lead sheet vs. lead-lined composite panels) matches what your contractor's installation method requires.

Lead Sheet vs Other Shielding Formats

Buyers sometimes have a choice between plain lead sheet (installed by a contractor onto backing material) and pre-fabricated lead-lined panels or lead bricks, depending on the application. For a comparison of when lead sheet is preferable to lead bricks - particularly relevant for nuclear and heavier industrial shielding applications. For most diagnostic imaging rooms in hospitals, sheet form remains the standard due to its flexibility in fitting non-standard wall dimensions and openings like doors and viewing windows.

Why Sourcing From a Recycler-Manufacturer Matters

Lead sheet manufactured from recycled lead performs identically to sheet made from primary (mined) lead - purity and density are a function of the refining process, not the source of the raw material. Hospitals sourcing from a manufacturer that recycles lead as part of an integrated operation, like Gravita India, benefit from consistent quality control across the full production chain, from raw lead through to finished sheet. You can read more on how recycled lead compares to primary lead on performance and quality in our detailed guide, Recycled Lead vs Primary Lead: Quality, Performance & Economics.

Frequently Asked Questions

What thickness of lead sheet is needed for an X-ray room?

It depends on the equipment energy, workload, and occupancy of adjacent areas - typically in the range of 1 mm to 3 mm for general diagnostic X-ray rooms, but the exact figure must come from a radiation shielding design report prepared by a qualified consultant, not a generic standard.

Is AERB approval required before installing lead shielding?

Yes. AERB requires an approved shielding design before equipment installation, and the shielding material used must match the approved specifications exactly.

Can lead sheet be installed on existing walls, or does it need new construction?

Lead sheet can typically be retrofitted onto existing walls by bonding it to plywood or gypsum backing, making it suitable for both new construction and renovation of existing diagnostic rooms.

Does recycled lead sheet perform differently from sheet made with primary lead?

No. Once refined to the required purity, recycled lead performs identically to primary lead in shielding applications - the shielding effectiveness depends on density and thickness, not the source of the raw material.

Sourcing lead sheet for a hospital or diagnostic centre shielding project? Get in touch with Gravita's lead products team for specifications and pricing.
